About This

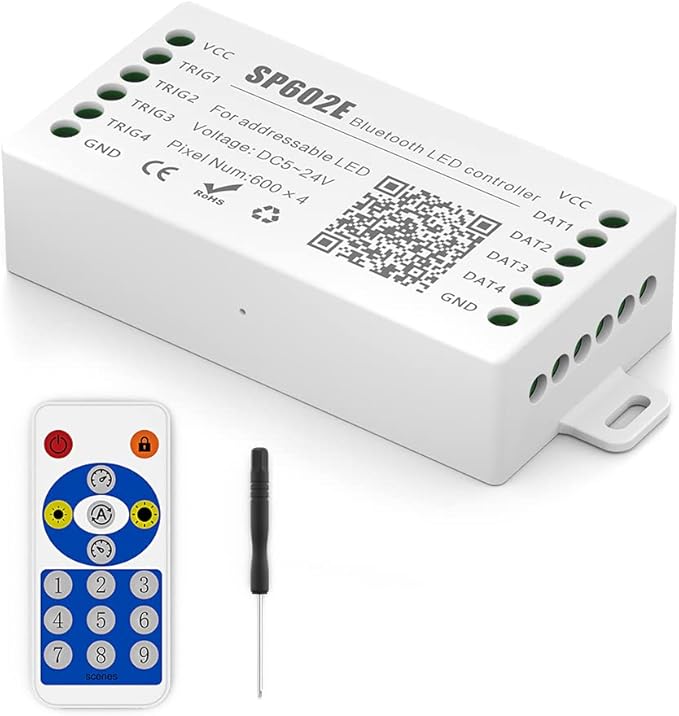

• 4 ports output:Can't Control SK6812RGBW IC. 4 signal output ports work independently,the lighting effect of each port is independent without one impacting the other.Make the whole project look cooler and more coloful .Select the output port you want to control in the APP.Complex projects can be completed more easily.Easier to operate.Operate all 4 outputs at the same time, all lighting effects to be synchronized. Voltage Depends on LED strip . DC5V LED strip , use DC5V Power supply.
• Suitable for automotive LED retrofit projects. 4 triggers can be added. Each triggers can control one or more outputs. Synchronize the car's turn, brake and reverse lights.One trigger for two left turn lights, one trigger for two right turn lights, one trigger for reverse lights and one trigger for brake lights.This strip B07LG5JG3Z addressable is DC12V addressable LED strip. There's no trigger in the packing list.
• Timer function .You can set the same time every day to light the strip, you can select lighting effect such as rainbow, twinkle star, fire, stacking,comet, wave,chasing, gradient, wiping, breathing, rhythm spectrum, beat ejection, pulse, ripple, etc. to light up . The controller cannot cut off the power, otherwise the alarm clock record will be cleared. Up to 5 timers can be set.
• Group Control . One Group can control 5 device.Can create multiple groups. Each singal port can control 600 pixels max,total 2400 pixels . It can adjust the speed , brightness , channel order,etc. Support the FCOB RGB WS2811 IC, WS2812B ,WS2811, WS2813 ,WS2815, UCS1903.

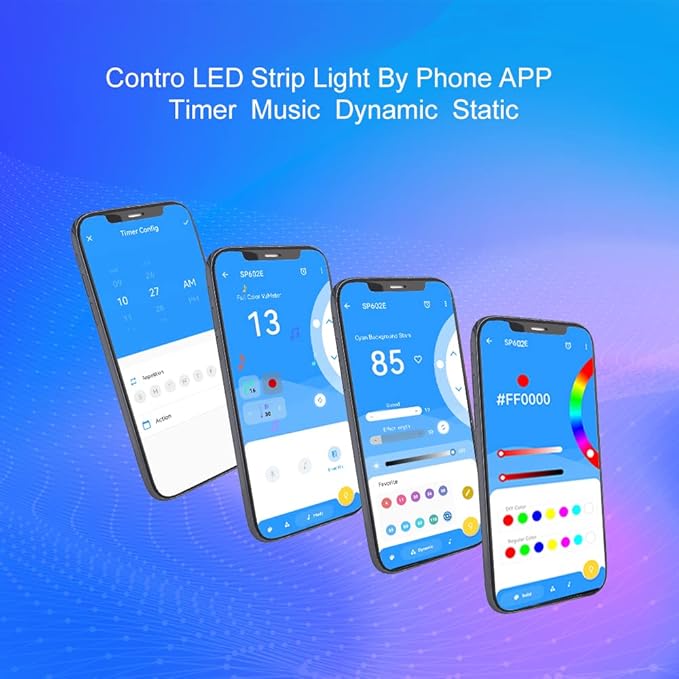

• Customized color by hand. you can enter the most accurate color according to the color property of RGB by hand .You can creat 16 million monochrome effect . Search Banlan X app in App Store/Google Play or scan the QR code to install.
• Color calibration. When the app color is inconsistent with the color of the LED strip, where green is blue and blue is green ，You can use the APP to calibrate the colors to make them consistent.
• Insufficient power supply will cause the controller to lose control, the color of the LED strip is frozen, remote cannot be used, and the Bluetooth is disconnected . Please note : When you Light up 1 color（red or green or blue or pure white) 0.1W/LED . 2 colors (red+green) 0.2W/LED , 3 colors (red+green+blue=mixed white) 0.3W/LED.If you don't know which power supply can be used for your LED project, you can email us.
• It is not recommended to light up the full brightness white light for a long time, because the main function of the addressable RGB IC light strip or fairy string is chasing rainbow effects .

Overview

• Color : White
• Brand : BTF-LIGHTING
• Indoor/Outdoor Usage : Indoor
• Special Feature : 4 Signal Outputs,Max 600 pixels/port, APP conrtol, Bluetooth, RF remote, Group control,, Timer, Trigger Control 4 Signal Outputs,Max 600 pixels/port, APP conrtol, Bluetooth, RF remote, Group control,, Timer, Trigger Control
• Light Source Type : LED
• Power Source : DC
• Light Color : RGB
• Occasion : Wedding
• Style : SP602E
• Material : Plastic
