About This

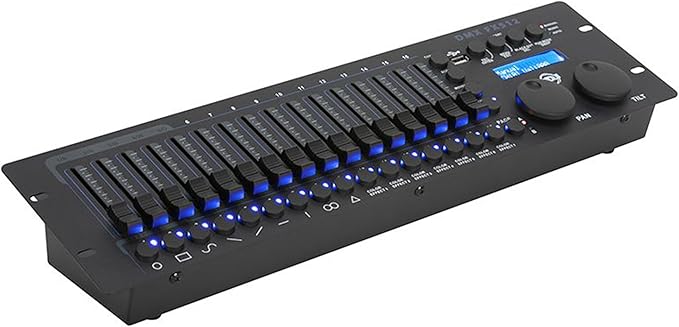

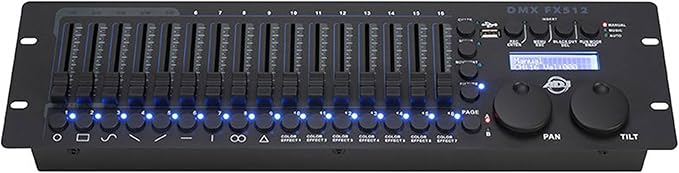

• Features: 19" Rack-mount DMX Controller DMX 512 & RDM protocol. 512 DMX channels. Control up to 32 intelligent fixtures, up to 18 channels each 32 chases, each up to 100 steps, can run 5 chases simultaneously 32 programmable scenes Soft-patchable faders & control wheels 16 built-in effects generator. 9 for moving light and 7 for RGB LED fixtures USB for data backup and firmware update.
• Control: DMX512 and RDM RDM to set the DMX addresses and DMX channel mode of the fixtures from controller 16 channel control faders Dedicated Pan/Tilt wheels (User Assignable) 16 Effects / Fixture select buttons Sound sensitivity digitally adjustable (0%-100%), built-in Mic. With Wired Digital Communication Network
• Connections: 5pin XLR DMX Output Power Supply Input USB A Port Operational Conditions: Use in dry location only Min. ambient temperature: 32°F (0°C) Max ambient temperature: 113°F (45°C) Humidity: <75% Allow 6" minimum between this controller and surrounding devices or wall Storage Conditions: Store in a dry location Ambient storage temperature: 77°F (25°C)
• Power: Power Supply: DC9V`12V 300mA min. (DC9V 1A PSU Included) Power Consumption: DC9V 165mA 1.5W, DC12V 16mA 2W Dimensions & Weight: Length: 5.28" (134mm.) Width: 19" (482mm.) Height: 2.71" (68.9 mm.) Weight: 4.7lbs.(2.13kg.) Certifications & Rating: CE cETLus (Pending) IP20

Overview

• Brand : adj
• Connectivity Technology : USB
• Special Feature : Advanced Lighting Control Features
• Model Name : DMX FX512
• Size : 5.28" X 19" X 2.71" (134Mm X 482Mm X 68.9Mm)
